Granule/Powder/Liquid Models
- Solid performer
- High production capacity
- Highly customizable
- Excellent Packing Quality
- Accurate bag length control
- Consistent sealing temperature
- Great User Experience
- Intuitive control interface
- Self-diagnosis and error indication system
- Quick Chang-over design

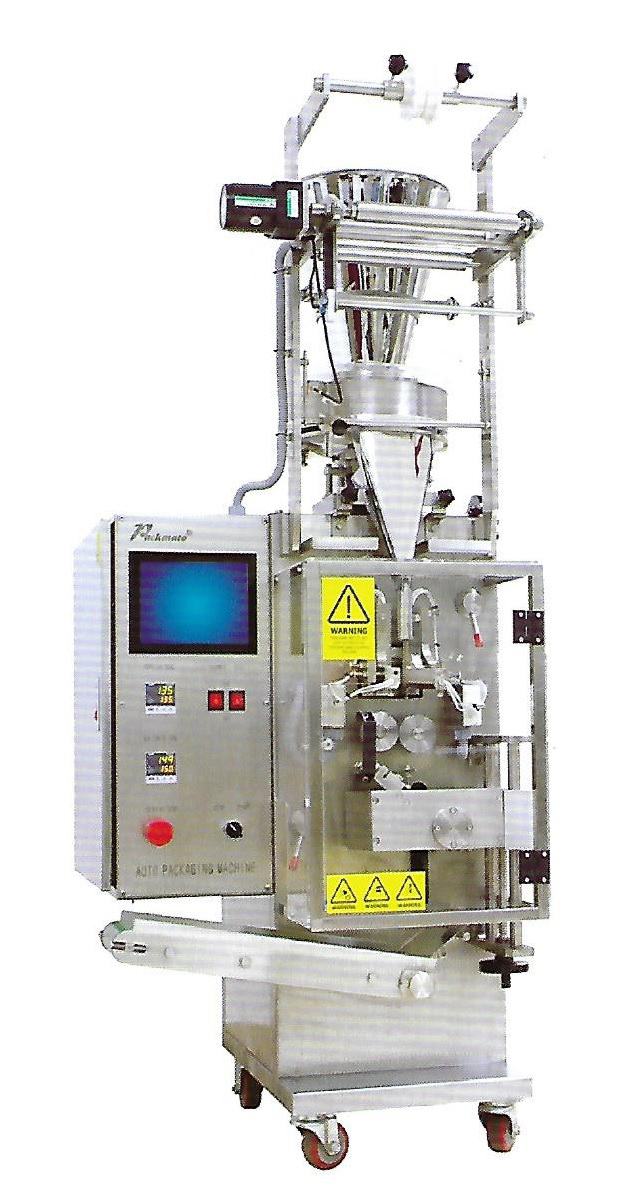

Granule models - Specification
Model |
TMPG10 II |
TMPG50 II |
TMPG100 II |
TMPG150 II |
TMPG50P/A |
TMPG100P/A |
|
Filling range (ml) |
0-10 |
1-50 |
50-100 |
100-150 |
1-50 |
50-100 |
|
Dosing mode |
Volumetric cup |
||||||
Bag length (mm) |
40-120 |
||||||
Bag width (mm) |
25-85 |
25-100 |
25-80 |
25-95 |
|||
Film width (mm) |
50-170 |
50-200 |
50-170 |
50-200 |
|||
Capacity (bags/min) |
50-80 |
30-60 |
20-40 |
50-75 |
30-55 |
||
Sealing style |
3-side or 4-side seal |
Centre or tetrahedron seal |
|||||
Power source |
220V/50Hz/1-phase or 110V/60Hz/1 phase |
||||||
Power consumption |
1.2 |
Application
- Granule model
- For products in free flow, non-sticky granular form packed in heat sealable laminates film. Eg. Cereal, oatmeal, instant coffee, instant drink mix, soup mix, sugar, desiccant, detergent powder, condiments, biscuits, peanuts, candies etc.
- Suitable for laminated film and paper material.
- Filling range is below 150ml
- Power model
- For powder type products packed in heat sealable laminates film. Eg. Milk powder, coffee powder, flour, ginseng powder, sodium carbonate, veterinary powder, facial powder, slimming tea etc.
- Filling range is below 50ml
- Liquid model
- L50II&L100II for viscous fluid and paste packed in heat sealable laminates film. E.g. shampoo, shower gel, skin lotion, cream, fruit jam, ketchup, spaghetti sauce, toothpaste etc.
- LF50II for non-viscous liquid packed in heat sealable laminates film. E.g. makeup remover, toner, moisturizing fluid, cleansing water, edible oil, soy sauce, vinegar etc.
- Filling range is below 100ml
Standard configuration
- Microprocessor controller LED touch panel HMI
- Constant heat sealing by Japanese PID temperature controller
- Quad-turret volumetric cup (Granule Model)
- Stepping motor driven auger screw system with agitator (Powder model)
- 8 liters store hopper (Powder model)
- Mechanical driven piston pump (L50 II & L100 II)
- 22 liters store hopper (L50 II & L100 II)
- Magnetic pump (LF50 II)
- Stepping motor driven bag pulling system
- Digital bag length adjustment
- Photo-electric sensor eye-mark tracking
- Rotary cutting bag device (II series)
- Output conveyor (II series)
- Horizontal seal embedded cutter (P/A series)
- Self-diagnosis and error indication system
- Film-end alarm and stop
- Product counter
Options
- PLC control with 5.7”color touchscreen
- Stainless steel SUS304 machine body
- Stainless steel SUS304 external parts
- Six-turret volumetric cup (Granule model)
- Servo motor is driven auger screw filling system (Powder model)
- Agitator in hopper (Liquid model)
- Chain bags with batch cut
- Easy-opening cutter (I-notch/V-notch)
- Exhaust air function
- Gas Flush
- Hole punching device
- Coding device (embossed/ribbon/thermal transfer)
