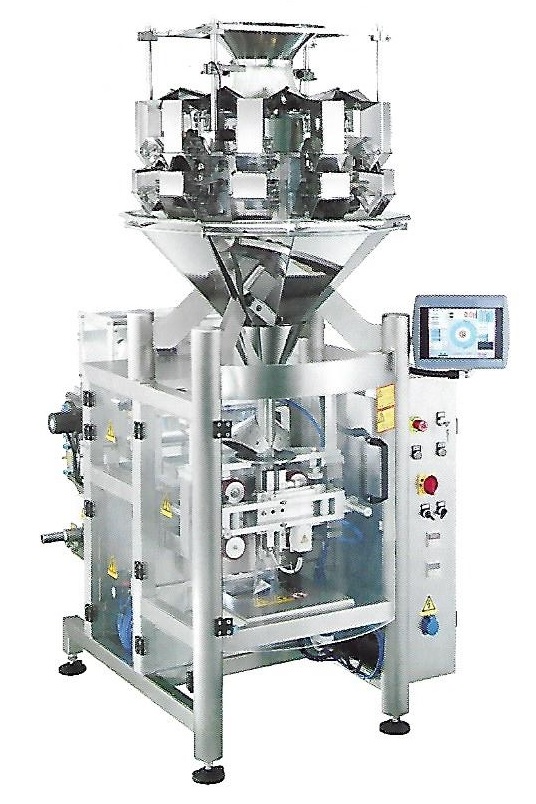

The Compack Machine is widely used to quantitatively package all kinds of the material which are in granular, bulk and globular.
- This is especially suitable for the small weight and pouch with bulk or granular material.
- Using the unqualified eliminate device can make the packing in high accuracy.
- 10-Head 0.8L combination scale with 400mm film width, vertical packing machine, which is small and saves space, can make weighing and packing at the same time.
Applications
Chinese medicinal decoction pieces, puffed food, nuts, candies, gummy candy, seeds, dry fruit, pet food, hardware, etc. Design & manufacture according to your any kind of products specifications.
Specifications
Model |
TMPV-1040*08 |
Display |
10.4 inch touchscreen |
Weigh Head Nos. |
10 |
Weigh Bucket Volume |
0.8L |
Hopper Material |
304 Stainless Steel |
Single Weighing Range |
10-500g |
Max. Weight |
1000g |
Weighing Accuracy |
± 0.3 ~ 1.5g |
Max. Width of roll film |
400mm |
Bag Width |
60~190mm |
Bag Length |
50~230mm |
Packaging film materials |
Complex film |
Film Drive Power |
Servo Motor |
End Seal Power |
Cylinder |
Air Consumption |
0.3m³/min, 0.6MPa |
Max. Packing Speed |
60 bags/min |
Power |
4KW |
Voltage/Frequency |
220V 50/60Hz (alternative) |
NW. / GW. |
500kg/700kg |
Package Size (mm) |
1530X1100X2200 |
