The Compack Machine is widely used to quantitatively package all kinds of the material which are in granular, bulk and globular.
- This is especially suitable for the limited workshop to finish weighing and packing the bulk material automatically.

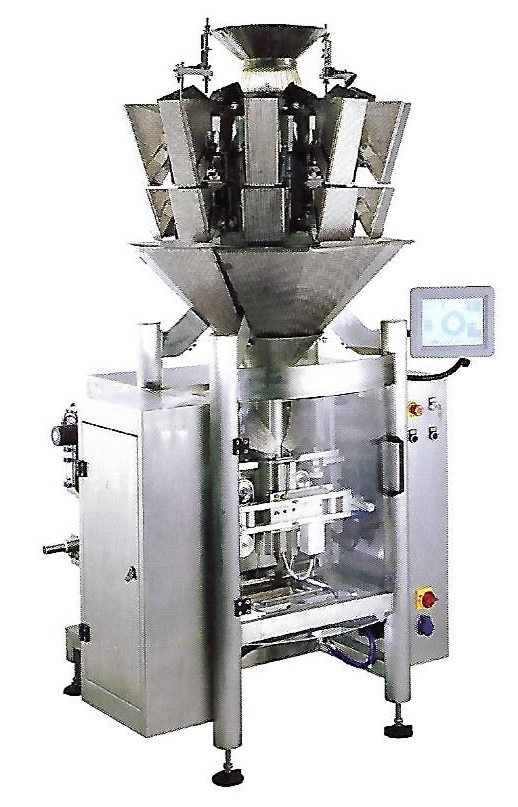

- The 10-Head 1L combination scale with 400mm film width vertical packing machine, which is small and saves space, can make weighing and packing at the same time.
Applications
Puffed food, nuts, candies, gummy candy, seeds, dry fruit, pet food, plums, beans, hardware, etc. Design & manufacture according to your any kind of products specifications.
Specifications
Model |
TMPV-1040*10 |
Display |
10.4 inch touch screen |
Weigh Head Nos. |
10 |
Weigh Bucket Volume |
1L |
Hopper Material |
304 Stainless Steel |
Single Weighing Range |
10-1000g |
Max. Weight |
1000g |
Weighing Accuracy |
± 0.5 ~ 1.5g |
Max. Width of roll film |
400mm |
Bag Width |
60~190mm |
Bag Length |
50~230mm |
Packaging film materials |
Complex film |
Film Drive Power |
Servo Motor |
End Seal Power |
Cylinder |
Air Consumption |
0.3m³/min, 0.6MPa |
Max. Packing Speed |
60 bags/min |
Power |
4KW |
Voltage/Frequency |
220V 50/60Hz (alternative) |
NW. / GW. |
550kg/750kg |
Package Size (mm) |
1530X1100X2200 |
