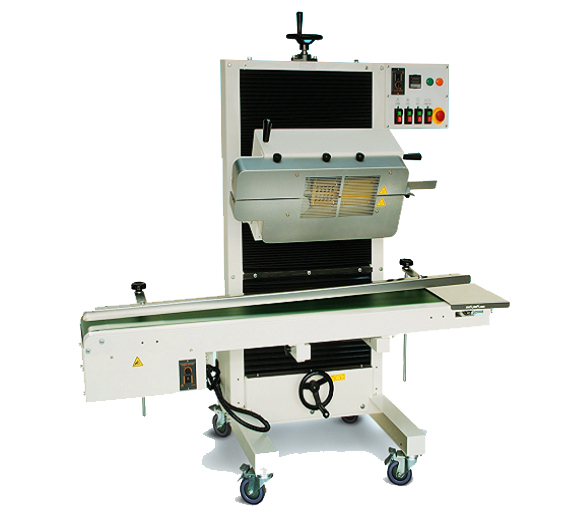

Vertical & Horizontal Sealing Machine
Description
- Applications for foods, chemicals and hardware parts.
- Packing materials: any heat sealable material.
- From top of open mouth of pouch to sealing area max. Distance is 35mm.
- Both conveyor height and sealing machine height are adjustable.
Optional Devices
- Stainless steel (SUS#304).
- Hot foil coder.
Specifications
Model |
TMPBS-M606 |
Power |
780W |
Packing Speed |
0~10 m/minute (Adjustable) |
Power Supply |
AC200V / 220V / 240V, Single phase, 50/60Hz |
Conveying Direction |
From right to left |
Conveyor Width |
200mm |
Bag Size |
Within 300mm Long 300mm Wide. |
Temperature Range |
50º C - 230º C |
Heating Power |
350W x 2 pcs |
Sealing Machine Height Adjustable Range |
500mm |
Conveyor Height Adjustable Range |
200mm |
Conveyor Load Weight |
10kg |
Sealing Width |
5mm (applicable to PE, PP) or 10mm, either one. |
Packing Material Thickness |
0.06~0.5mm (Double-layer Thickness) |
Machine Size |
(L) 1630 x (W) 700 x (H) 1700 mm |
Packing Size |
(L) 1730 x (W) 800 x (H) 1800mm |
Packing Function |
Sealing |
