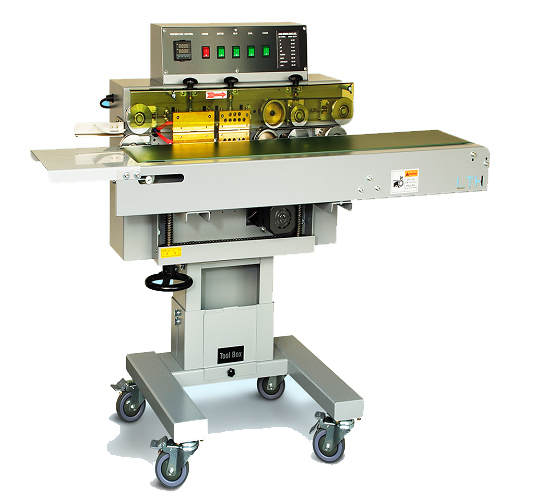

Horizontal Band Sealer
Description
- Applications for foods, chemicals and hardware parts.
- Packing materials: any heat sealable material.
- From top of open mouth of pouch to sealing area max. Distance is 35mm.
- Sealing head can be tilted 0~15º degree forward.
Optional Devices
- Stainless steel (SUS#304).
- Sealing speed adjusting device.
- 5-digit counter.
- Coder (solid ink or hot foil).
Specifications
Model |
TMPBS-M901 |
Power |
780W |
Packing Speed |
8 m/minute (Fixed Speed) |
Power Supply |
AC100V / 110V, AC200V / 220V / 240V, Single phase, 50/60Hz |
Conveying Direction |
From left to right |
Conveyor Width |
200mm |
Bag Size |
Within 300mm Long 300mm Wide. |
Temperature Range |
50º C - 230º C |
Heating Power |
350W x 2 pcs |
Conveyor Height Adjustable Range |
90mm |
Conveyor Load Weight |
5kg |
Sealing Width |
5mm (applicable to PE, PP) or 10mm, either one. |
Packing Material Thickness |
0.06~0.5mm (Double-layer Thickness) |
Machine Size |
(L) 1350 x (W) 610 x (H) 980~1160mm |
Packing Size |
(L) 1430 x (W) 690 x (H) 1130mm |
Packing Function |
Sealing |
