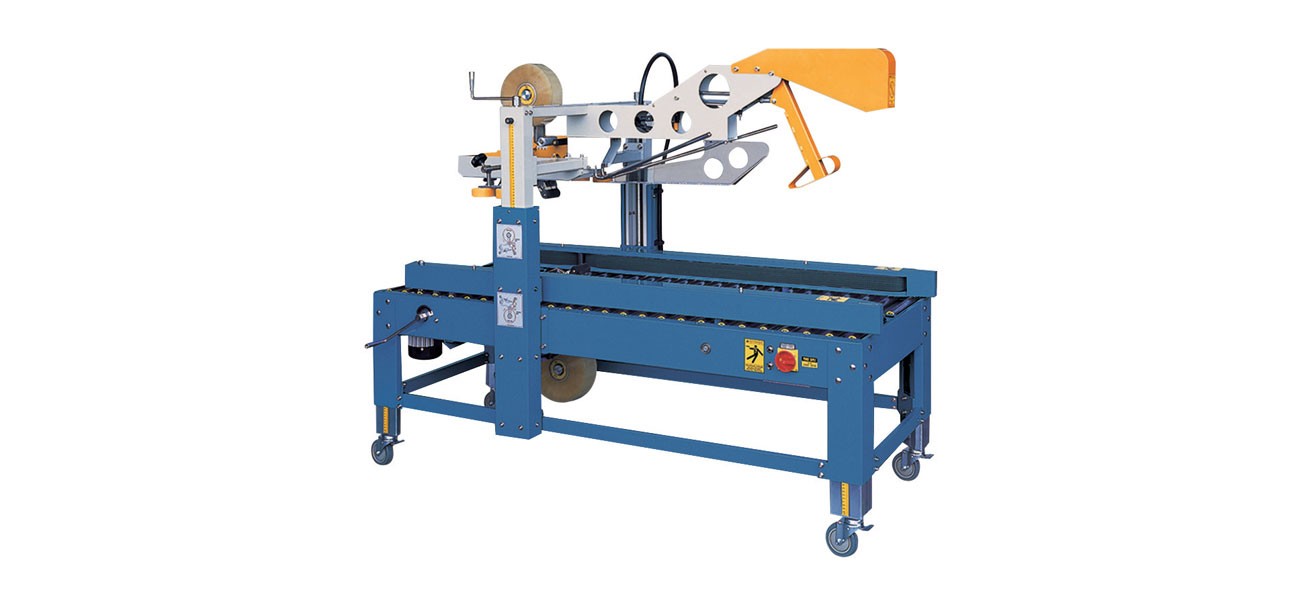

FLAP FOLDING CARTON SEALER
This semi-automatic carton folding sealer folds the cartons front flap, rear flap and side flap then seal carton automatically. It is a side driving system. Height and width can be adjusted by crank handle.
- Operator feeds the carton into the machine, and then Semi-automatic Carton Folding Sealer folds the carton's front flap, rear flap and side flap then seal carton automatically.
- Two sides belt driven for folding carton sealer.
- The height and the width of the carton can be adjusted by crank handle.
- This machine is suitable for few carton size simplicity production line.
Specification
- Drive System: Top & Side Belt
- Power Supply: 1φ, 110V/220V/240V
- Tape Width: 2" or 3" (according to customer's need)
- 2" Standard Carton Dimension: L =200~600mm, W =130~500mm, H =120~500mm
- 3" Standard Carton Dimension: L =200~600mm, W =150~500mm, H =120~500mm
- Taping end: 60±5mm
- Working Table Height: 570~770mm
- Convey Speed: 20M/min
- Machine Size: 1960(L) x 930(W) x 1650(H) mm
Option
- Extension roller table: L450/500 x W500mm
- 60 sec. Emergency stop buttom
- Stainless steel structure SUS#304
- CE standard
