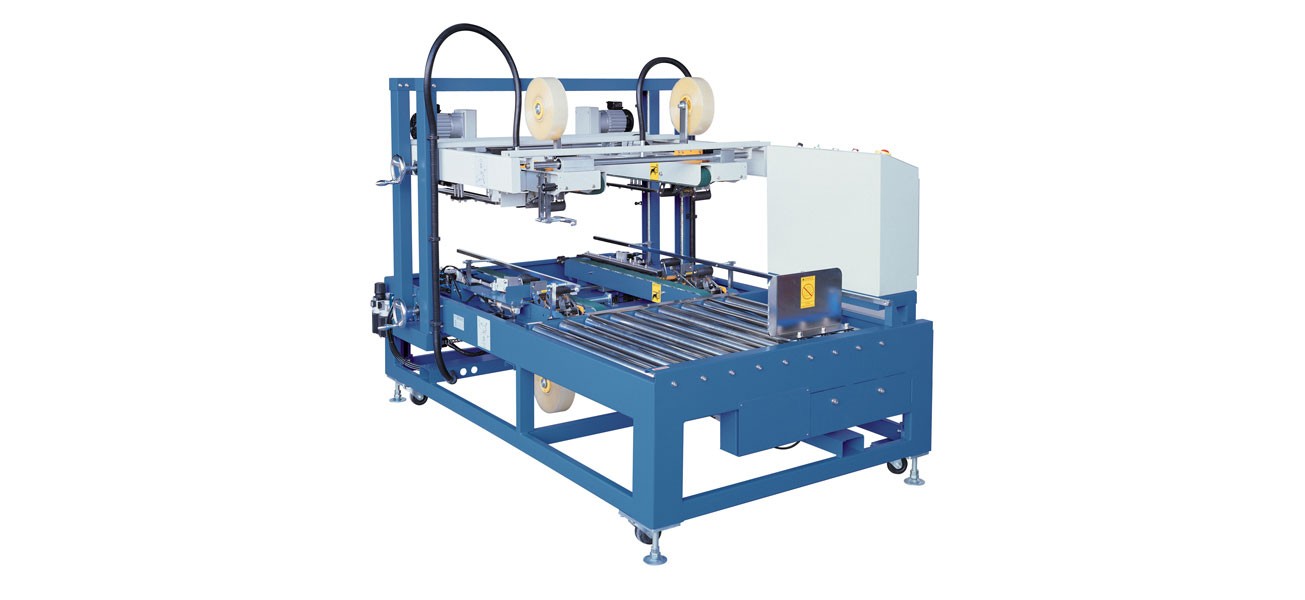

SEMI-AUTO CARTON EDGE SEALER
This H edge sealer is a top drive and bottom drive model. It can work with the random type case sealer or the uniform type case sealer.
The carton is sealed on the center line of the top and bottom of the carton,and then the carton will be pushed as 90 degrees into the edge sealer where it completes the "H" seal top and bottom.
- The height and width of the semi-auto carton edge sealer are easily adjusted by crank handle.
- This carton edge sealer is suitable for a few carton sizes production line.
Specification
- Drive System: Top & Bottom Belt
- Power Supply: 1φ, 110V/220V/240V, 50/60HZ
- Tape Width: 2" or 3" (according to customer's need)
- 3" Standard Carton Dimension: L=280~630mm,W=220~520mm, H=225~600mm
- Taping end: 60±5mm
- Working Table Height: 570~770mm
- Convey Speed: 20M/min
- Machine Size: 2100(L) x 1450(W) x 1500(H) mm
- Air Compressor: 6 KG/cm<sup>2</sup>
Option
- This unit is available in stainless steel.
- Place a 90 degree turntable if you need a system that runs straight line.
- Safety cover.
- Outfeed power roller conveyor
- Counter
- CE standard
